Layered Flow Chart

A Claude Code plugin that helps humans understand large codebases fast.

Claude generates an interactive single-file HTML that displays an abstract processing flow as Layer 0. Click any module to deep dive into progressively concrete layers. Unlike traditional UML tools like Mermaid that can only represent a single level of detail, readers can freely navigate between abstraction levels. The output is plain HTML/JS, so it works directly with Git. No more drowning in AI-generated code you can't follow.

Live Demo

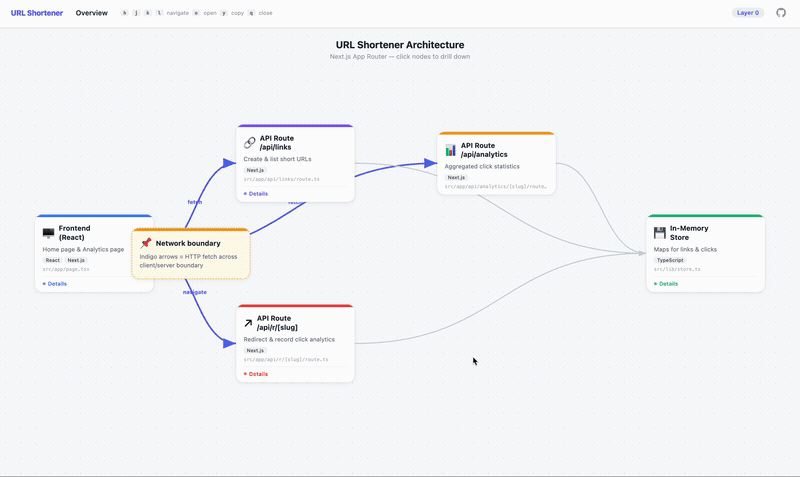

View the interactive demo — a URL Shortener architecture visualized with hierarchical layers.

Features

• FigJam/Miro-like interactive flow chart in a single HTML file
• Click nodes to deep dive into detail layers (stacking modals)
• Vim-style keyboard navigation: h j k l navigate, o open, y yank (copy), q close
• Network boundary arrows (indigo) to distinguish cross-process connections
• Copy node content as Markdown with y key or click the copy button
• 3-mode workflow: Create / Update / Refine
• Multi-phase SubAgent pipeline for thorough code investigation before chart generation

Installation

From marketplace (recommended)

claude plugin marketplace add TeXmeijin/layered-flow-chart
claude plugin install layered-flow-chart

Manual

Copy the skills/layered-flow-chart/ directory to ~/.claude/skills/.

Usage

Simply ask Claude Code to create a flow diagram:

> Make a flow diagram of the authentication module
> Create a layered flow chart of the order processing pipeline
> この機能の処理フロー図を作って

The skill automatically:

1. Investigates your codebase using serial Explore SubAgents (broad survey, then deep dive)
2. Converts findings into a structured LEVELS data object
3. Generates a single-file HTML with the interactive chart
4. Opens it in your browser for verification

Updating an existing chart

> Update the flow chart to reflect the latest code changes
> フロー図を最新のコードに合わせて更新して

Refining an existing chart

> Add boundary connections to the flow chart
> Improve the layout and add more detail to the API layer
> フロー図のレイアウトを改善して

Examples

The examples/ directory contains a sample Next.js URL Shortener app with:

• Frontend pages (Home + Analytics dashboard)
• API Routes (create link, redirect with analytics, get stats)
• In-memory store with aggregation functions
• User-Agent parser with 40+ browser/OS detection rules

The live demo is the flow chart generated from this example app.

License

MIT
