claude-hud

Claude HUD

A Claude Code plugin that shows what's happening — context usage, active tools, running agents, and todo progress. Always visible below your input.

Install

Inside a Claude Code instance, run the following commands:

Step 1: Add the marketplace

/plugin marketplace add jarrodwatts/claude-hud

Step 2: Install the plugin

/plugin install claude-hud

Step 3: Configure the statusline

/claude-hud:setup

Done! The HUD appears immediately — no restart needed.

---

What is Claude HUD?

Claude HUD gives you better insights into what's happening in your Claude Code session.

What You See	Why It Matters
Project path	Know which project you're in (configurable 1-3 directory levels)
Context health	Know exactly how full your context window is before it's too late
Tool activity	Watch Claude read, edit, and search files as it happens
Agent tracking	See which subagents are running and what they're doing
Todo progress	Track task completion in real-time

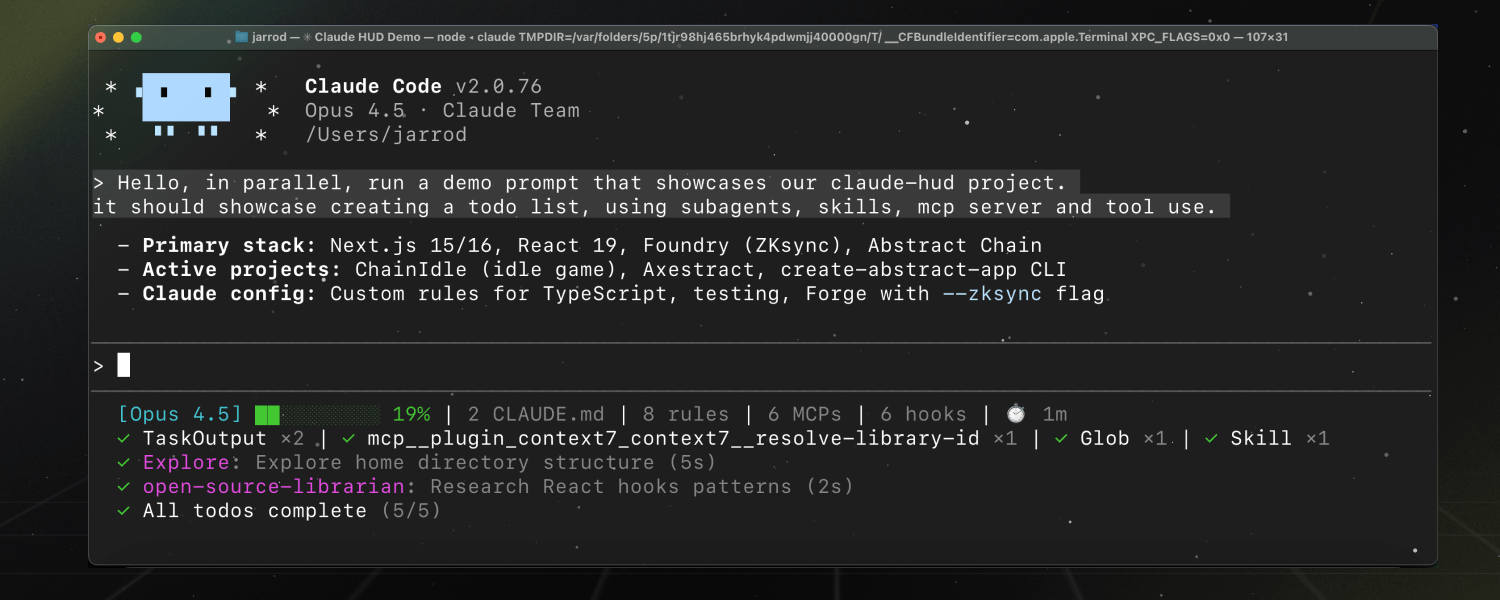

What Each Line Shows

Session Info

[Opus | Pro] █████░░░░░ 45% | my-project git:(main) | 2 CLAUDE.md | 5h: 25% | ⏱️ 5m

• Model — Current model in use (shown first)
• Plan name — Your subscription tier (Pro, Max, Team) when usage enabled
• Context bar — Visual meter with color coding (green → yellow → red as it fills)
• Project path — Configurable 1-3 directory levels (default: 1)
• Git branch — Current branch name (configurable on/off)
• Config counts — CLAUDE.md files, rules, MCPs, and hooks loaded
• Usage limits — 5-hour rate limit percentage (opt-in, Pro/Max/Team only)
• Duration — How long the session has been running

Tool Activity

✓ TaskOutput ×2 | ✓ mcp_context7 ×1 | ✓ Glob ×1 | ✓ Skill ×1

• Running tools show a spinner with the target file
• Completed tools aggregate by type with counts

Agent Status

✓ Explore: Explore home directory structure (5s)
✓ open-source-librarian: Research React hooks patterns (2s)

• Agent type and what it's working on
• Elapsed time for each agent

Todo Progress & Checklist

▸ Fix authentication bug (2/5) | 📋 3 required, 2 optional

• Current task or completion status
• Progress counter (completed/total)
• Checklist indicator — Shows pending verification items from checklist.md

---

How It Works

Claude HUD uses Claude Code's native statusline API — no separate window, no tmux required, works in any terminal.

Claude Code → stdin JSON → claude-hud → stdout → displayed in your terminal
           ↘ transcript JSONL (tools, agents, todos)

Key features:

• Native token data from Claude Code (not estimated)
• Parses the transcript for tool/agent activity
• Updates every ~300ms

---

Configuration

Claude HUD can be configured via ~/.claude/plugins/claude-hud/config.json or using the interactive skill:

/claude-hud:configure

The configure skill provides a guided menu flow to customize your HUD.

Options

Option	Type	Default	Description
layout	string	default	Layout style: default or separators
pathLevels	1-3	1	Directory levels to show in project path
gitStatus.enabled	boolean	true	Show git branch in HUD
gitStatus.showDirty	boolean	true	Show * for uncommitted changes
gitStatus.showAheadBehind	boolean	false	Show ↑N ↓N for ahead/behind remote
display.showModel	boolean	true	Show model name [Opus]
display.showContextBar	boolean	true	Show visual context bar ████░░░░░░
display.showConfigCounts	boolean	true	Show CLAUDE.md, rules, MCPs, hooks counts
display.showDuration	boolean	true	Show session duration ⏱️ 5m
display.showUsage	boolean	true	Show usage limits (Pro/Max/Team only)
display.showTokenBreakdown	boolean	true	Show token details at high context (85%+)
display.showTools	boolean	true	Show tools activity line
display.showAgents	boolean	true	Show agents activity line
display.showTodos	boolean	true	Show todos progress line

Usage Limits (Pro/Max/Team)

Usage display is enabled by default for Claude Pro, Max, and Team subscribers. It shows your rate limit consumption directly in the HUD.

When enabled, you'll see your 5-hour usage percentage. The 7-day percentage appears when above 80%:

[Opus | Pro] █████░░░░░ 45% | my-project | 5h: 25% | 7d: 85%

To disable usage display, set display.showUsage to false in your config.
