drawio-skill — From Text to Professional Diagrams

English · 中文 · 📖 Online Docs

A skill that turns natural-language descriptions into .drawio XML and exports them to PNG / SVG / PDF / JPG via the native draw.io desktop CLI. It can also turn an existing codebase (Python / JS-TS / Go / Rust), Terraform / Kubernetes / docker-compose infrastructure, or a SQL schema into an auto-laid-out diagram. Works with Claude Code, Cursor, Copilot, OpenClaw, Codex, Autohand Code, Hermes, and any agent compatible with the Agent Skills format.

✨ Highlights

• 7 diagram type presets — ERD, UML Class, Sequence, C4, Architecture, ML/Deep Learning, Flowchart
• Mermaid → native .drawio (draw.io ≥ 30) — author 28 standard types as Mermaid text (mindmap, gantt, timeline, journey, pie, sankey, kanban…) and the CLI converts them into a laid-out, editable .drawio — structure in, layout free
• Visualize a codebase — extract and auto-lay-out the structure of a Python / JS-TS / Go / Rust project (import graphs) or a Python class hierarchy — Graphviz placement, transitive reduction, nested module containers
• IaC → architecture diagram — turn Terraform configs, Kubernetes manifests, or docker-compose files into an architecture diagram where every resource renders as its official AWS / Azure / GCP / K8s icon, edges derived from actual references (role ARNs, selectors, volume mounts)
• SQL DDL → ER diagram — parse CREATE TABLE statements into per-table nodes with PK/FK markers and crow's-foot foreign-key edges
• Deterministic sequence diagrams — describe participants + messages as JSON; lifelines, auto-tracked activation bars, and arrows are computed, never hand-placed
• C4 model with drill-down — one command generates the multi-page System Context → Container → Component set with official C4 shapes; parent elements click through to their child page
• Search 10,000+ official shapes — resolve the exact AWS / Azure / GCP / Cisco / Kubernetes / UML / BPMN icon style instead of guessing (no more blank-box shape=mxgraph.* typos)
• AI / LLM brand logos — 321 logos (OpenAI, Claude, Gemini, Mistral, Llama, Ollama, LangChain…) that draw.io has none of, plus 18 data-store brands (Redis, Postgres, Qdrant, Milvus…) for LLM/RAG architecture diagrams
• Self-check + auto-fix — reads its own PNG output and auto-fixes overlaps, clipped labels, stacked edges, and more (up to 2 rounds)
• Iterative feedback loop — up to 5 rounds of targeted refinement
• Style presets — capture your visual style from a .drawio file or image, reuse on demand
• Clean layout — grid-aligned, spacing scales with diagram size, connectors routed clear of nodes
• Multi-agent, zero-config — runs from a single SKILL.md; no MCP server, no background daemon (the optional npx installer needs Node, the skill itself does not)

🖼️ Examples

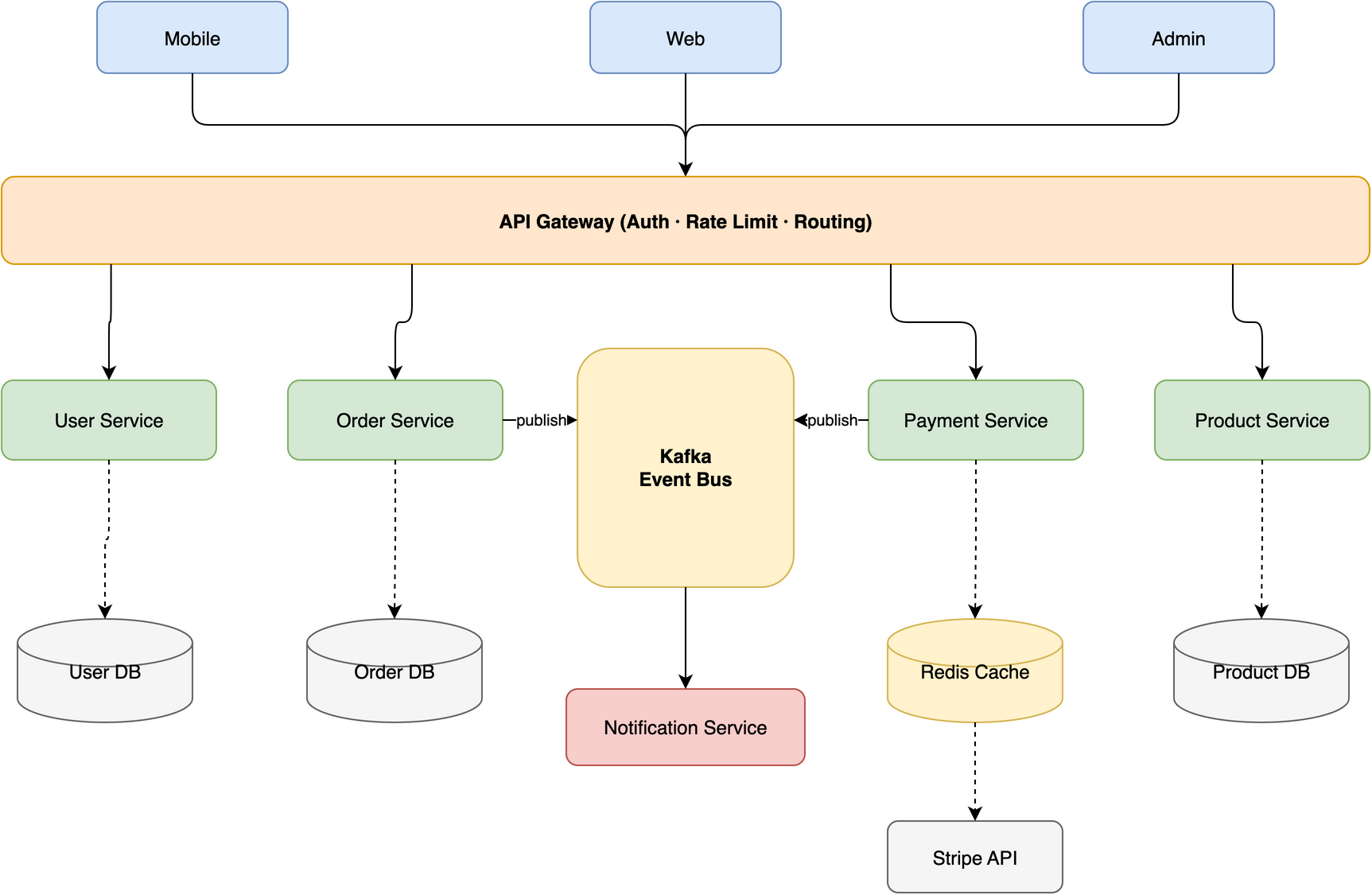

[!TIP] The hero image above was generated from this single prompt:

Create a microservices e-commerce architecture with Mobile/Web/Admin clients,
API Gateway (auth + rate limiting + routing), Auth/User/Order/Product/Payment
services, Kafka message queue, Notification service, and User DB / Order DB /
Product DB / Redis Cache / Stripe API
