mural

mural-mcp

Mural board management for Claude Code via MCP. Extract, update, create, and query Mural boards directly from your Claude Code sessions.

Features

• List boards — browse boards by workspace or room, search by title
• List rooms — discover rooms within a workspace
• Extract — fetch full board content as structured JSON
• Summary — get a compact overview (areas, widget counts, tags)
• Query — filter widgets by area, type, or text content
• Update — sync changes to a board (desired-state or explicit operations)
• Create — create new boards with templates or custom specs

Prerequisites

• Node.js >= 22
• A Mural account with API access
• A Mural OAuth app (client ID + secret)

Creating a Mural OAuth App

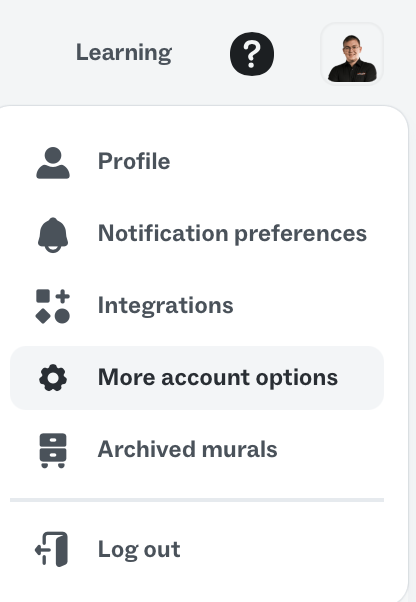

Step 1: Open account settings

Click your profile icon in the top-right corner of Mural and select More account options.

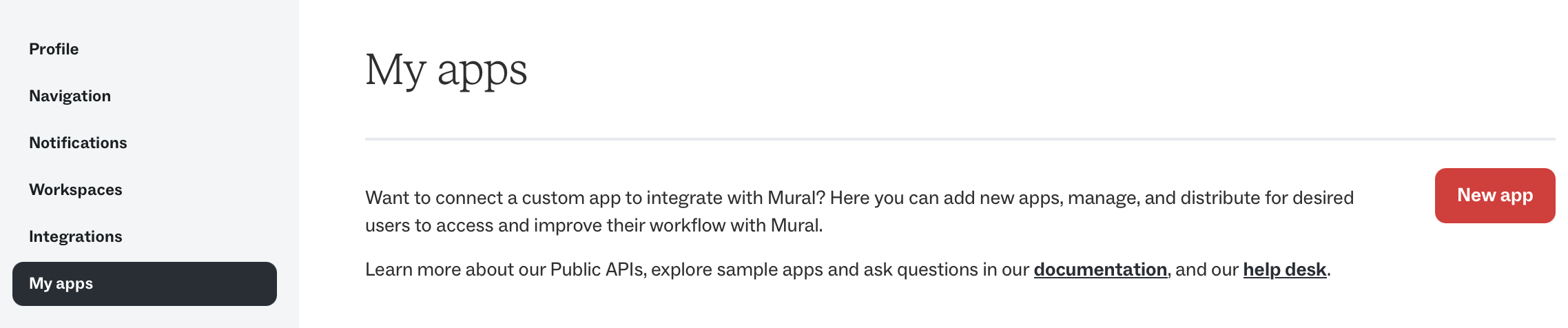

Step 2: Navigate to My Apps

In the settings sidebar, click My apps, then click the New app button.

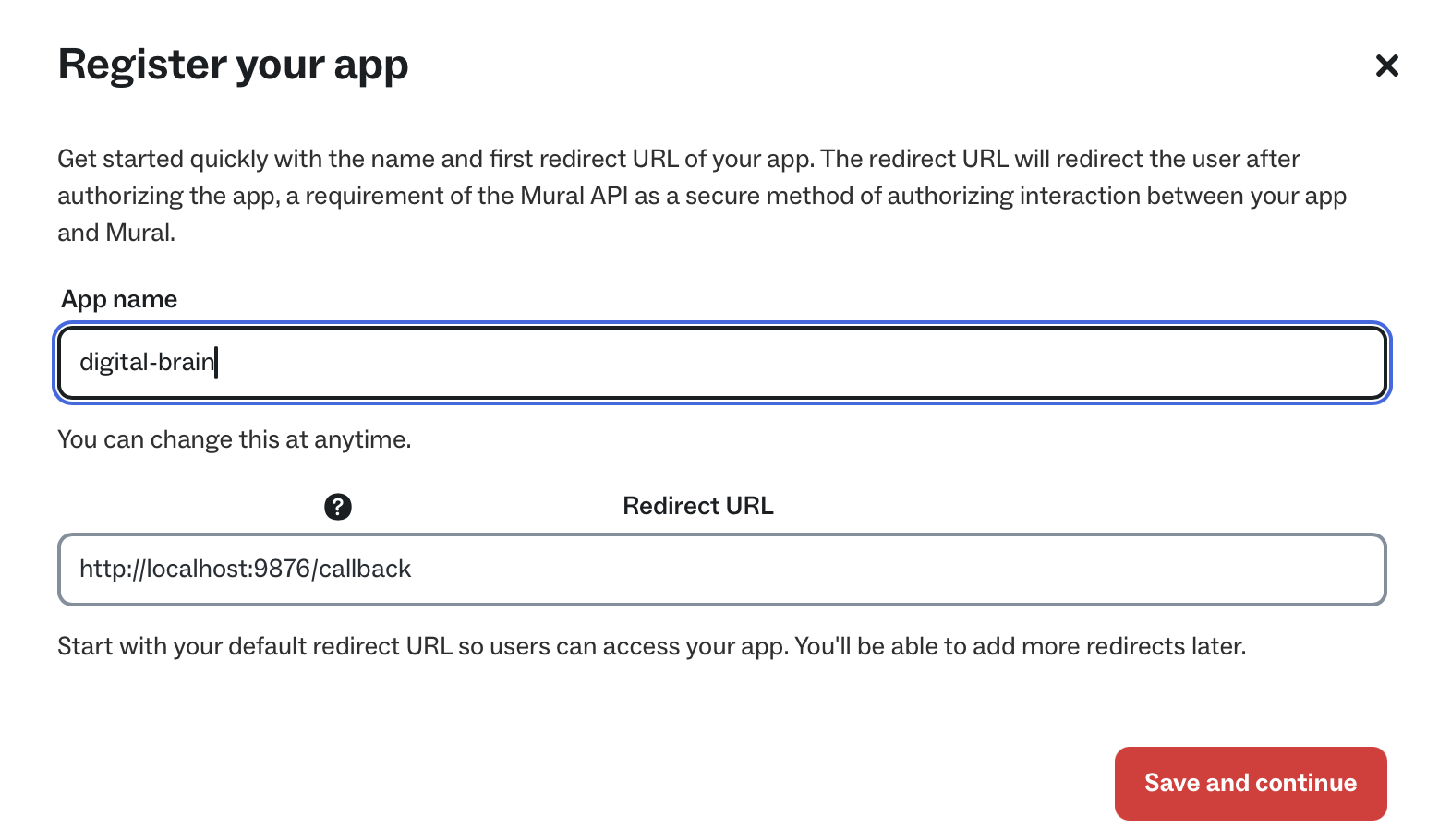

Step 3: Register your app

Fill in:

• App name — any name you like (e.g., claude-mural)
• Redirect URL — must be exactly: http://localhost:9876/callback

Click Save and continue.

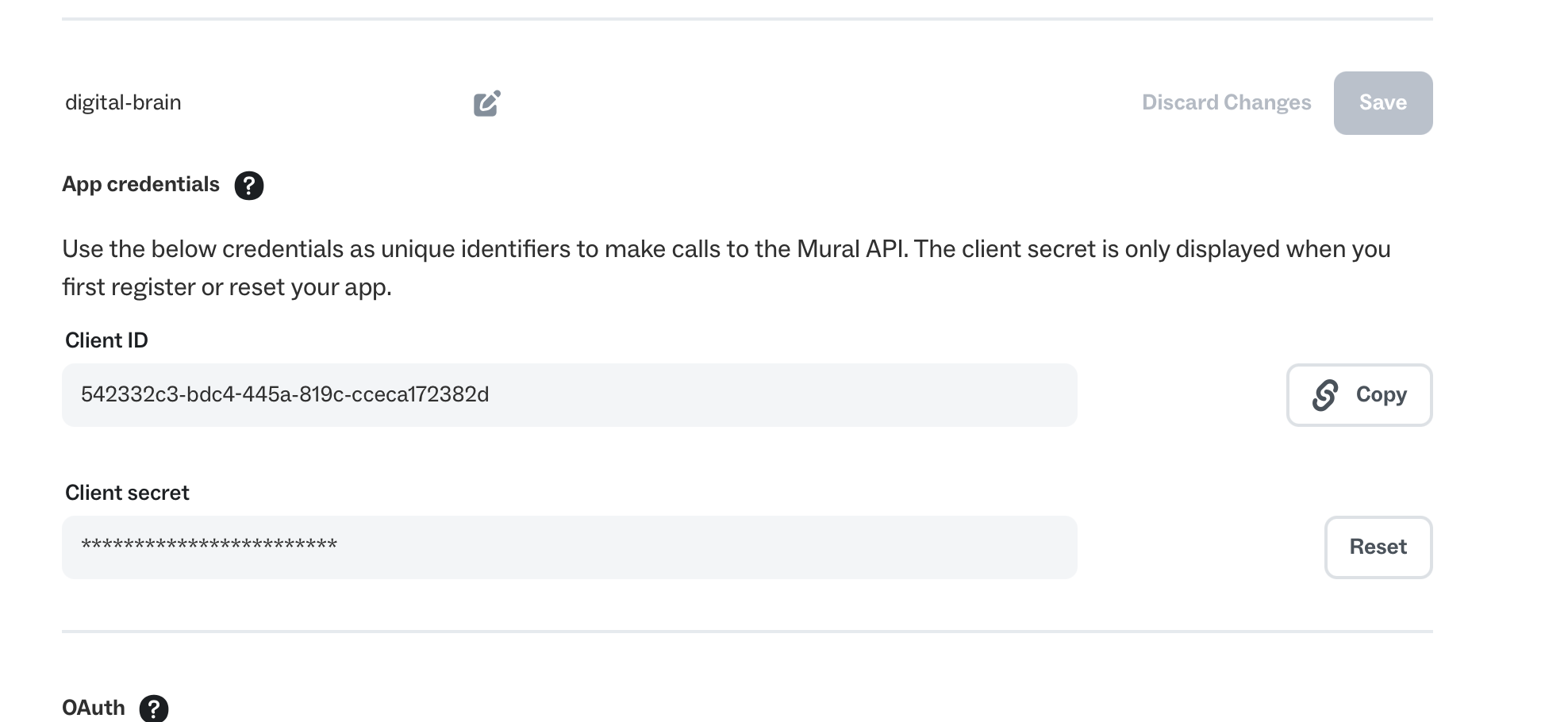

Step 4: Copy your credentials

After saving, you'll see your Client ID and Client Secret. Copy both — the client secret is only shown once (you can reset it later if needed).

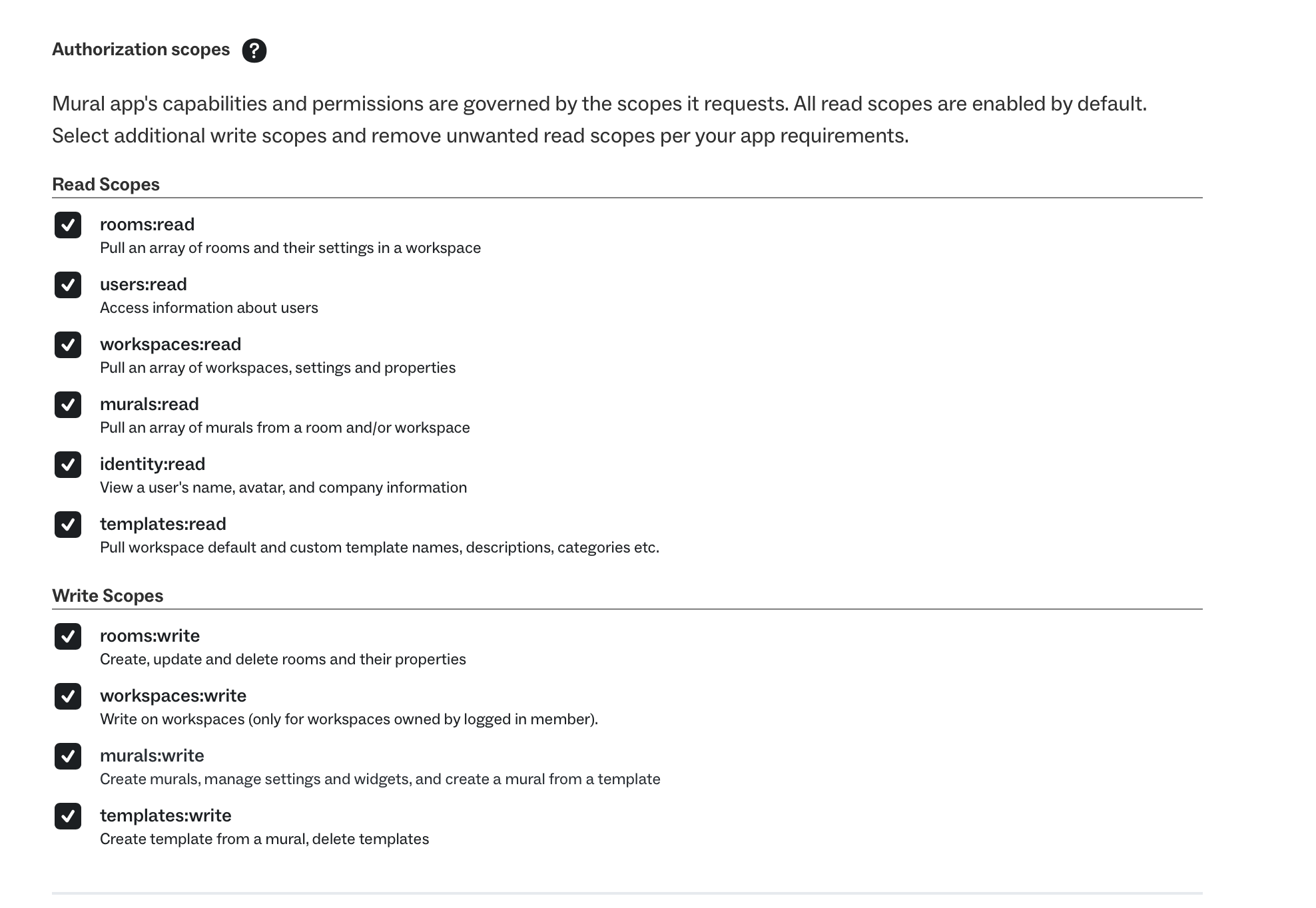

Step 5: Configure scopes

Enable the following scopes for full functionality:

Read Scopes (all enabled by default):

• rooms:read
• users:read
• workspaces:read
• murals:read
• identity:read
• templates:read

Write Scopes (enable these):

• rooms:write
• workspaces:write
• murals:write
• templates:write

Click Save when done.

Installation

As a Claude Code Plugin

Add the marketplace and install:

/plugin marketplace add https://github.com/philippgehrig/mural-mcp.git
/plugin install mural

During installation you'll be prompted for:

• Mural OAuth Client ID — from Step 4 above
• Mural OAuth Client Secret — from Step 4 above
• Default workspace (optional) — auto-detected from board URLs if not set

Manual MCP Configuration

Add to your ~/.claude/.mcp.json:

{
  "mcpServers": {
    "mural": {
      "command": "node",
      "args": ["/path/to/mural-mcp/dist/index.js"],
      "env": {
        "MURAL_CLIENT_ID": "your-client-id",
        "MURAL_CLIENT_SECRET": "your-client-secret"
      }
    }
  }
}

Authentication

On first use, the plugin opens your browser for OAuth authorization. The token is cached at ~/.mural-mcp/token.json and reused until expiry.

If authentication expires, the next tool call will automatically trigger a fresh OAuth flow.

Available Tools

Tool	Description
mural_list_boards	List or search boards by workspace/room, with optional title filter
mural_list_rooms	List rooms in a workspace
mural_extract_board	Fetch all widgets from a board as structured JSON
mural_summary	Get area names, widget counts, and tags
mural_query_widgets	Filter widgets by area, type, or text
mural_update_board	Apply changes (desired-state diff or explicit create/update/delete)
mural_create_board	Create a new board with initial content

Development

npm install
npm run build
npm run dev      # run with tsx (no build needed)
npm test         # run tests

Environment Variables

Variable	Description	Default
MURAL_CLIENT_ID	OAuth app client ID	(required)
MURAL_CLIENT_SECRET	OAuth app client secret	(required)
MURAL_WORKSPACE	Default workspace ID	(auto-detected)
MURAL_CALLBACK_PORT	OAuth callback port	9876

License

MIT
