MCP server for creating and editing draw.io diagrams through intent-level commands.

What It Does

fcp-drawio lets LLMs build architecture diagrams, flowcharts, and system maps by describing what they want -- not how to draw it. The LLM sends high-level operations like add svc AuthService theme:blue and connect AuthService -> UserDB, and fcp-drawio renders them into fully styled draw.io XML with automatic layout via ELK. Built on the FCP framework.

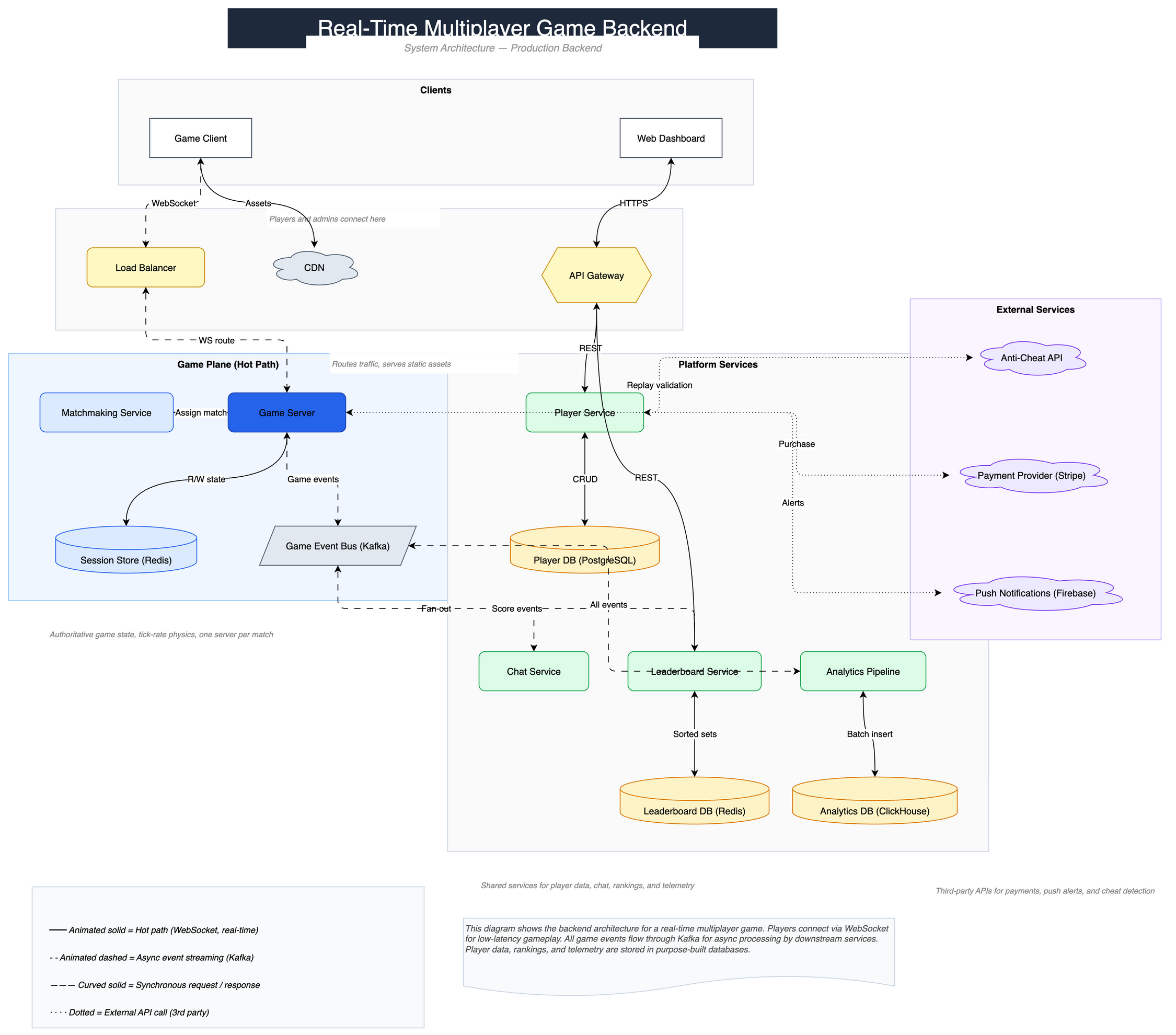

Multiplayer game backend — 20 nodes, 5 swim lanes, auto-layout (open in draw.io)

Quick Example

drawio([
  'add svc AuthService theme:blue',
  'add db UserDB theme:green near:AuthService dir:right',
  'connect AuthService -> UserDB label:queries',
])

Response:

+svc AuthService @(200,200 140x60) blue
+db UserDB @(400,200 120x80) green
~AuthService->UserDB "queries" solid
digest: 3s 1e 0g

This produces a draw.io diagram with a blue rounded-rectangle service node, a green database cylinder, and a labeled edge between them -- all positioned automatically.

Available MCP Tools

Tool	Purpose
drawio(ops)	Batch mutations -- add shapes, connect, style, group, layout
drawio_query(q)	Inspect the diagram -- map, list, describe, connections, find
drawio_session(action)	Lifecycle -- new, open, save, checkpoint, undo, redo
drawio_help()	Full reference card

Component Library

Type	Shape	Use For
svc	Rounded rect	Services, components
db	Cylinder	Databases, storage
api	Hexagon	APIs, gateways
queue	Parallelogram	Queues, streams
cloud	Cloud	External services
actor	Person	Users, personas
doc	Document	Files, reports
box	Rectangle	Generic
decision	Diamond	Decisions, conditions
circle	Ellipse	States, events
process	Double-bordered rect	Predefined processes
triangle	Triangle	Warnings, deltas

Themes

Apply color themes to any shape: blue, green, red, orange, purple, yellow, gray, dark.

Installation

Requires Node >= 22.

npm install @ostk-ai/fcp-drawio

MCP Client Configuration

{
  "mcpServers": {
    "drawio": {
      "command": "node",
      "args": ["node_modules/@ostk-ai/fcp-drawio/dist/index.js"]
    }
  }
}

Architecture

4-layer architecture:

MCP Server (Intent Layer)
  src/server/ -- Parses op strings, resolves refs, dispatches
        |
Semantic Model (Domain Brain)
  src/model/ -- In-memory entity graph, event sourcing
        |
Layout (ELK)
  Auto-layout via elkjs -- flow:TB, flow:LR, near/dir positioning
        |
Serialization (XML)
  src/serialization/ -- Semantic model <-> mxGraphModel XML

Supporting modules:

• src/parser/ -- Operation string parser
• src/lib/ -- Component library, themes, stencils, draw.io CLI integration

See docs/examples/ for example diagrams (including the multiplayer game backend) and docs/ for design documents.

Development

npm install
npm run build     # tsc
npm test          # vitest, 465 tests
npm run test:watch
npm run dev       # tsc --watch

License

MIT
